Rocky Americas - 2.4 GHz Color Wireless Micro Camera with Receiver Kit

2.4 GHz Color Wireless Micro Camera with Receiver Kit
Model Number: 810T

Latest Improved Model: 2.4 GHz Wireless, Locked Frequency, COLOR, Audio/Video, 4-Channel Capability, ALL IN ONE - NEWLY DEVELOPED!
The 4-channel capable receiver allows you to operate 4 kits on different frequencies at the same time
No more tuning, uses locked frequency, automatically find the best signal
Up to 1000 feet reception range - *actual result will vary depending on environmental and/or topographical conditions.
FCC approved!
Watch out for those 0.9-1.2 GHz kits that claim to be 2.4 GHz.
YOUR BONUS: 2 FREE original manufacture AC/DC power adapters INCLUDED: 1 for receiver and 1 for camera - a $30 value
Designed for North America customers : NTSC & 110 volt adapters
Manufacture Suggested Retail Price (MSRP) : $249.99
Everything you need to set up in 5 minutes!

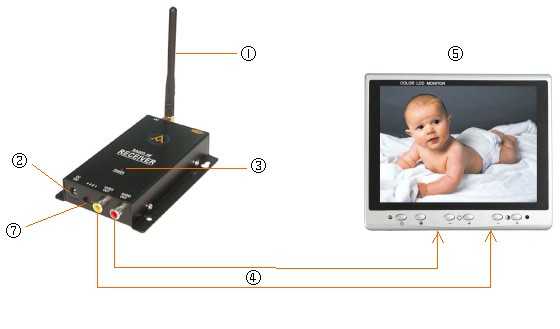

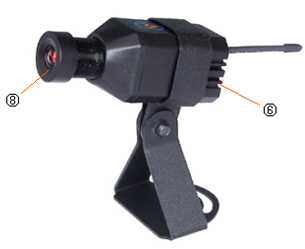

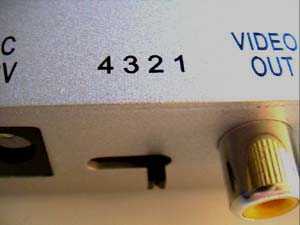

1. Receiver Antenna 2. Receiver Power Socket 3. Receiver Power Indicator 4. Audio/Video Jack to Monitor 5. Monitor (not included) 6. Camera Power Socket 7. Receiver Channel Selector 8. Camera Lens

810T Package Content:
One (1) Wireless A/V Micro Camera, one (1) 4-Channel Capable Wireless A/V Receiver, one (1) RCA type Video Cable, plus YOUR BONUS: one (1) DC 8V Power Adapter (for camera), one (1) DC 12V Power Adapter (for receiver), and one 9V Battery Clip.

810T Specifications:

Transmission Frequency	2.400 - 2.483 GHz (4 Channels)	Band Width	18 MHz
View Angle	62°	Minimum Illumination	1 LUX
Resolution	380 lines	TV System	NTSC
Scan Frequency	EIA: 60 Hz	Power Supply	Camera: DC 8V, Receiver: 12V
Output Power	10mW	Camera Power Consumption Current	150 mA
Video Output	1.5vp-p 75 ohm	Audio Output	1vp-p 600 ohm
Image Sensor	CMOS 1/3 inch	Pixels	510 x 492
Sync System	Internal	White Balance Control	AWB (zero color rolling)
Gain Control	AGC	S/N Ratio	38dB min
Electronic Shutter	1/60 - 1/15,000 sec	Gamma Correction	0.45
Operation Temperature	14°F - 122°F (-10°C - 50°C)	Storage Temperature	-40°F - 185°F (-40°C - 85°C)
Operation Humidity	85% RH	Weight	Camera: 15 g / 0.5 oz, Receiver: 135 g / 5 oz
Camera Dimensions	24 mm x 21 mm x 21 mm	Receiver Dimensions	59 mm x 115 mm x 20 mm

Buy 810T Kit Now:

US$139.99 US$119.99 + U.S. S/H (US$19.00)
(clicking the "Add to Cart" button below indicates you agree with all the terms stated on the Support page)

Contact us for availability!
