LCD Features:
|
Camera Features:
|
System Function/Connection Diagram:
LCD Functions:

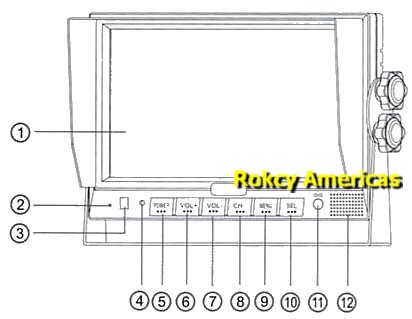

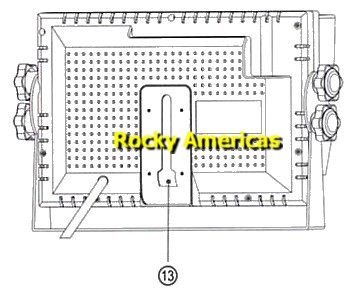

1. Color LCD screen 2. Button back light sensor 3. Remote control sensor 4. Power indicator 5. Power switch 6. VOL +: Volume up / menu selection down 7. VOL -: Volume down / menu selection up 8. CH -: Display mode selection 9. Menu 10. Jump key selector 11. Front panel A/V input 12. Loud speaker 13. Installation port for universal mount bracket |
Remote
Control Functions:

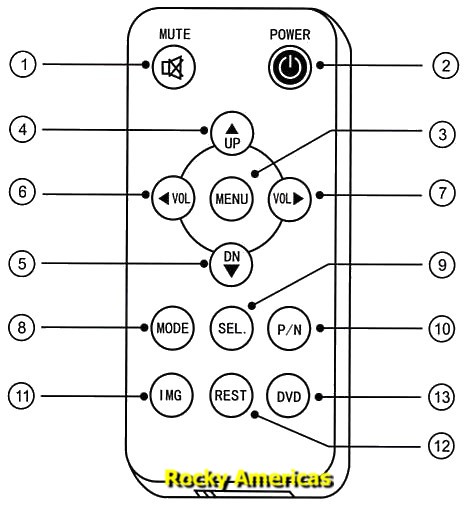

1. Mute 2. Power 3. Menu 4. Up 5. Down 6. VOL -: Volume down / menu selection up 7. VOL +: Volume up / menu selection down 8. Display mode 9. Jump key selector 10. PAL/NTSC system select 11. Language select 12. System reset 13. Front panel A/V input (DVD) select |

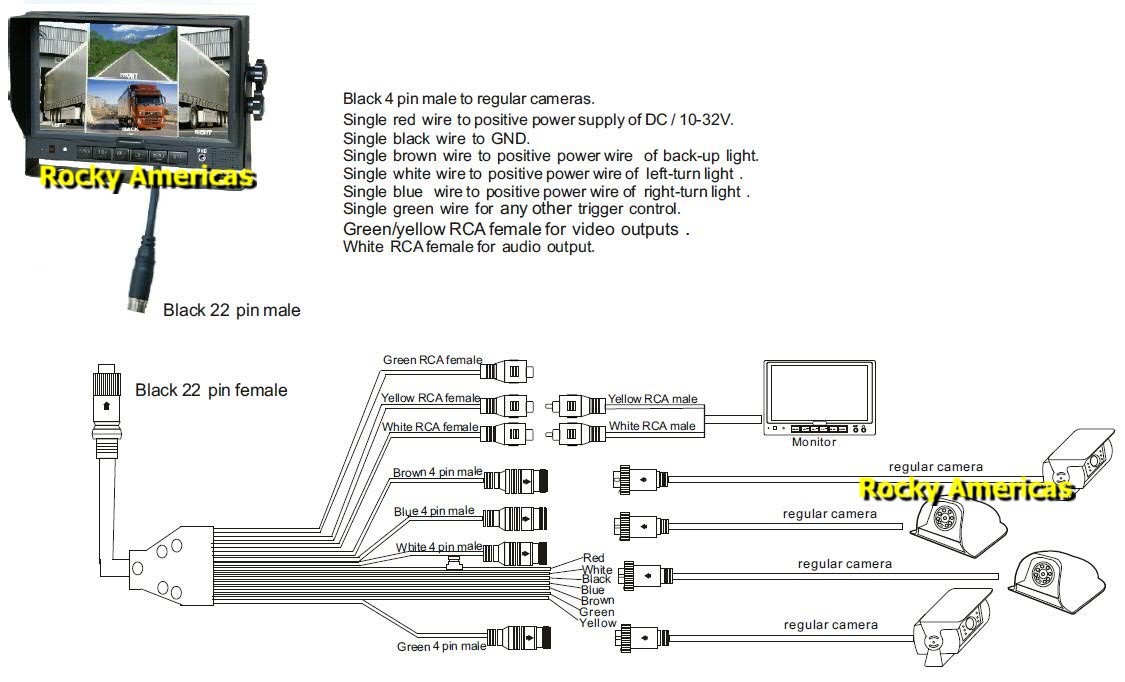

22-pin Power A/V Cable |
Front Panel A/V Input Cable |
Standard Mount Bracket |
Universal Mount Bracket |
Remote Control |
Sun Shield |
Angle Adjust Screws |
Camera 4-pin Power A/V to RCA Adapter |
30/15 Feet Camera Connecting Extension Cable |
LCD Specifications:
Display Screen | 7" Color TFT LCD |
Resolution | 2400 (H) x 480 (V) |
Audio Output |
1W |
Power Supply |
Vehicle Battery 12-32V |
Loud Speaker |
one 40 mm round speaker |
Doc Pitch |
0.192 (H) x 0.1805 (V) |
Power Consumption |
Max.
25W |
Contrast |
500:1 |
Brightness | 400 cd/m2 | View Angle |
Up 50°, Down 60°, Left/Right 70° |
Aspect Ratio |
16:9 | Power for Camera |
Max. 4 x 300mA, 12V |

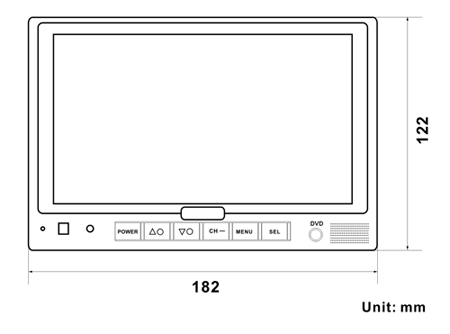

Monitor Size without Mount |
Approx. 182mm x 122mm x
43mm (7.2" x 4.8"
x 1.7") |
Weight without Cable |
580 g (approx. 20.5 oz) |
Operating Temperature |
14°F - 149°F (-10°C - 65°C) | Storage Temperature |
-22°F - 176°F
(-30°C - 80°C) |

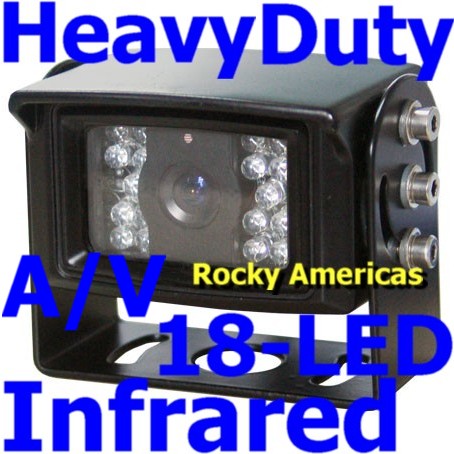

Rear View Camera
Specifications:
Image Sensor | 1/3" SHARP CCD Sensor | Horizontal Resolution | 420 TV Lines |
Effective Pixels | 512(H) x 492(V) | Minimum Illumination | 0 LUX (w/ LEDs on) / F:2.0 |
Horizontal Sync Frequency |
15,734 kHz |
Vertical Sync Frequency |
60 Hz |
Sensing
Area |
4.9 mm x
3.7 mm |
Sync System |
Internal |
Video Out Signal | 1.0 Vp-p 75 ohm | Power Supply | DC 12V |
AGC |
Auto |
S/N Ratio |
Better than
48dB |
Electronic Shutter |
1/60 - 1/10,000 second |
Weight |
Approx. 13.4 oz (380 g) |
IR Distance | 3 - 5 meters (10 - 15
feet) |
Built-in Lens |
f=2.8mm / F=2.0 |
Cable
Output |
Standard
RCA Video (Yellow) & DC (Red) Jack |
BLC |
Auto |
White
Balance |
Auto |
TV System |
NTSC |
Operating
Temperature |
-4°F -
158°F (-20°C - 70°C) / RH 95%
Max |
Storage
Temperature |
-40°F -
176°F (-40°C - 80°C) / RH 95%
Max |
Current
Consumption |
Max 300mA |
Lens Angel |
Wide View
Angel 120° |

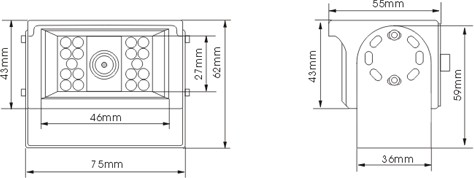

Dimensions (see picture below) | 75 mm (w) x 62 mm (h) x 55 mm (d) with bracket -> approx. 2.9" (w) x 2.4" (h) x 2.2" (d) |
Image Sensor | 1/3" SHARP CCD Sensor | Horizontal Resolution | 420 TV Lines |
Effective Pixels | 512(H) x 492(V) | Minimum Illumination | 0 LUX (w/IR LEDs on) / F:2.0 |
Sensing
Area |
4.9 mm x
3.7 mm |
Sync
System |
Internal |
Horizontal Sync Frequency |
15,734 KHz |
Vertical Sync Frequency | 60 Hz |
Scanning System |
1/2 Interlace |
Gamma Consumption |
0.45 |
Video Out Signal | 1.0 Vp-p 75 ohm | Power Supply | DC 12V |
AGC |
Auto |
S/N Ratio |
Better
than 48dB |
Electronic Shutter |
1/60 - 1/100,000
second |
Weight |
Approx. 330 g (Approx.
11.6 oz) |

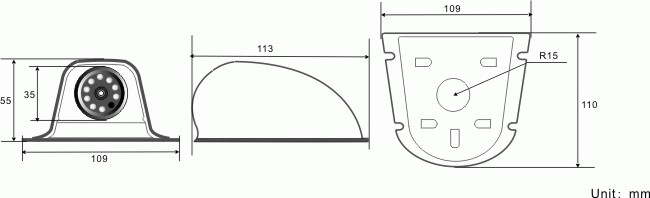

Dimensions | 109 mm (W) x 55 mm (H)
x 113 mm (D) (Approx. 4.3" x 2.2" x 4.4") |
Built-in Lens |
f=2.8mm / F=2.0 |
Cable
Output |
Standard
RCA Video (Yellow) & DC (Black) Jack |
BLC |
Auto |
White
Balance |
Auto |
TV System |
NTSC |
Operating
Temperature |
-4°F
- 158°F (-20°C - 70°C) / RH
95% Max |
Storage
Temperature |
-40°F
- 176°F (-40°C - 80°C) / RH
95% Max |
Current
Consumption |
Max 200mA |
Lens
Angel |
Wide View
Angel 120°
|
angle control rings for adjusting camera view angle -> |
One Camera
System Package Content:
One (1) MO136 Heavy Duty 7" Color
Mobile TFT LCD Monitor with Built-in Quad
Processor, one (1) CW087 Heavy Duty Color CCD
Night Vision Infrared A/V Wide View Angle Vehicle
Rear View Backup Camera, two (2) CCD Side Mount
Color Night Vision Infrared Wide View Angle
Vehicle Side View Backup Cameras, one (1) 22-pin
Power A/V Cable, one (1) Front Panel A/V Input
Cable, one (1) Standard Mount Bracket, one (1)
Universal Mount Bracket, one (1) Remote Control,
one (1) Monitor Sun Shield, four (4) Monitor Angle
Adjust Screws, one (1) Camera 4-pin Power A/V to
RCA Adapter, one (1) FREE bonus 30 Feet Camera
Connecting Extension Cable, two (2) FREE bonus
15 Feet Camera Connecting Extension Cable, one (1) User
Manual, one (1) Quick Connection Instruction, and
three (3) FREE bonus Male Power Lead Plug.
Buy Complete Heavy Duty Vehicle
Rear View Backup 3-Camera System Now:
(clicking the "Add to Cart" button
below indicates you agree with all terms stated
on the Support
page)
MO136CW087CS4012
(3-Camera System) US$899.99 US$699.99 + U.S. S/H (US$40.00) |
|
|
