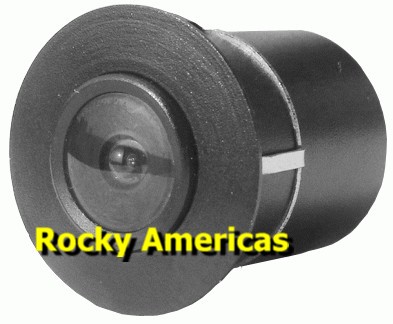

Special Design Small CCD Embedded Mount Color Wide View Angle Vehicle Rear View Backup Camera
Model Number: CW144637CE




click on the pictures to enlarge
 Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision.

System Features:

  • New 2010 Model New Arrival - Brand New Special Design Small COLOR CCD Embedded Mount Wide View Angle Vehicle Rear View Backup Camera

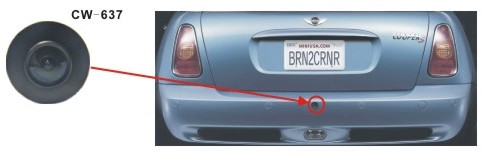

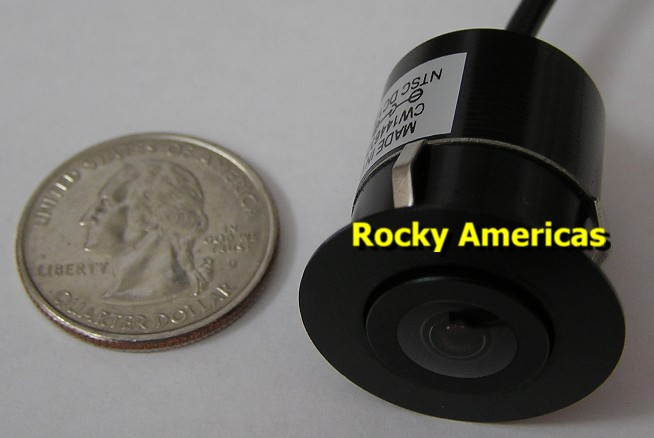

  • Special embedded mount - small and easy to conceal (see picture below)
  • Super light weight - camera is only 20 g (0.7 oz)
  • EXTRA Wide View Angle 180 degree, special SHARP 1/4" CCD image sensor with extra wide 1.7mm/1.8mm lens! - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
  • User adjust left/right mirror reverse image - can set to display a reversed camera image on the monitor (for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror) OR a normal view on the monitor (for vehicle front viewing) - connect two-pin jumper connector to the mirror reverse wire to set for normal view

connect two-pin jumper connector to the mirror reverse wire to set for normal view
  • Wiring camera protecting module
  • Embedded mount tightening fit springs
  • Use standard vehicle power supply of 12V DC
  • Water-proof without extra housing: for normal usage ONLY. Camera body and cables should be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
  • Standard RCA video output

click on the pictures to enlarge

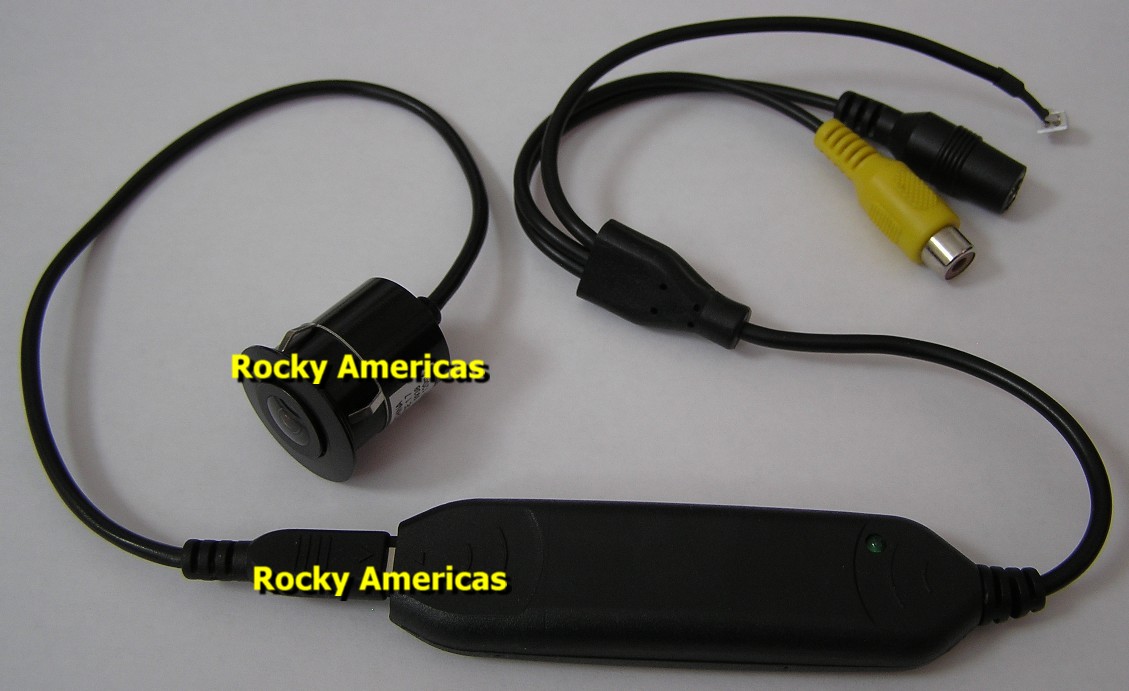

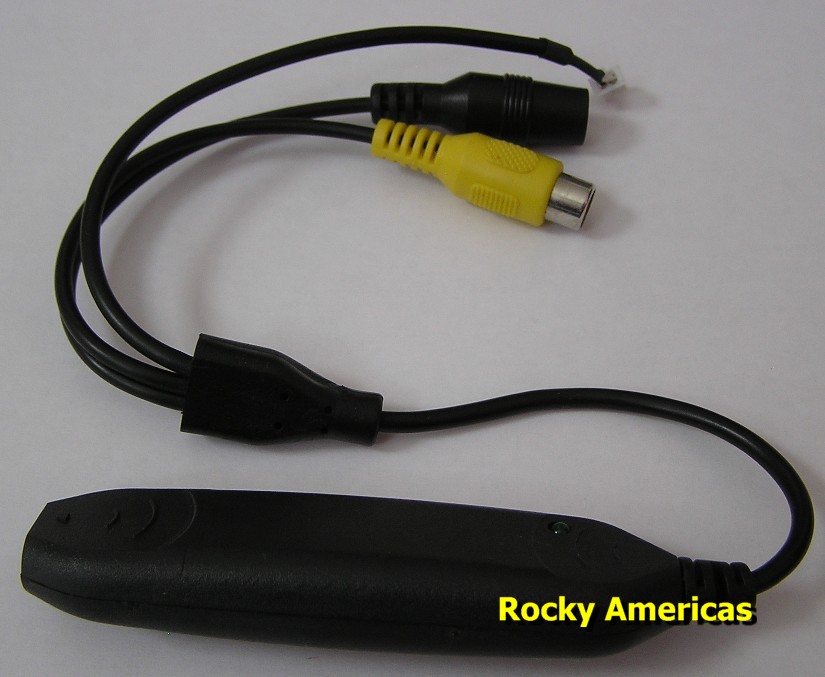

Camera connectors with protecting module
(click on the pictures to enlarge)

Note: The camera is designed to operate with constantly changing voltage levels (within normal range) produced by vehicles' battery and alternator. However, some vehicles have a very high momentary voltage at the vehicle starting time and the overload might cause damage to the camera. If that is the case for your vehicle, you will need to install a fuse, voltage regulator, etc. to protect your camera. Please consult professional vehicle audio/video equipment installers if needed.

System Specifications:

Image Sensor Special 1/4" SHARP CCD Sensor Horizontal Resolution 420 TV Lines
Effective Pixels 512(H) x 492(V) Minimum Illumination 0.2 LUX / F:1.2
Sensing Area
 3.6mm x 2.7mm
 Sync System
 Internal
Current Consumption Max 120mA Gamma Consumption
 0.45
Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V
AGC
 On
 S/N Ratio
 Better than 48dB
Electronic Shutter
 1/60 - 1/100,000 second
 Camera Weight
 Approx. 20 g (0.7 oz)
Dimensions (cylinder part, see picture below)
 Φ 20 mm x 28.4 mm (Approx. Φ 0.8" x 1.1") Built-in Lens
 f=1.7mm or 1.8mm / F=2.5
Cable Output
 Standard RCA Video (Yellow) & DC (Black) Jack
 BLC
 Auto
White Balance
 Auto
 TV System
 NTSC
Operating Temperature
 -4°F - 158°F (-20°C - 70°C) / RH 95% Max
 Storage Temperature
 -40°F - 185°F (-40°C - 85°C) / RH 95% Max
Color Black Lens Angel
 Wide View Angel 180°
specifications are subject to change without notice

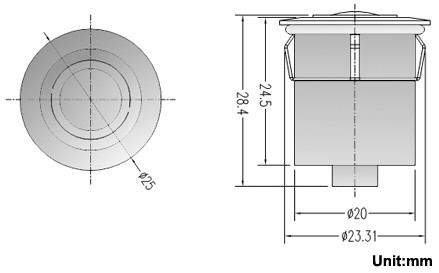

CW144637CE Model Dimensions

Buy Special CCD Embedded Mount Color Wide View Angle Vehicle Rear View Backup Camera Now:
US$239.99 US$149.99 + U.S. S/H (US$15.00)
(clicking the "Add to Cart" button below indicates you agree with all terms stated on the Support page)
For your convenience, your camera comes with one free Male Power Lead Plug, click here if you need to purchase an extra one.
