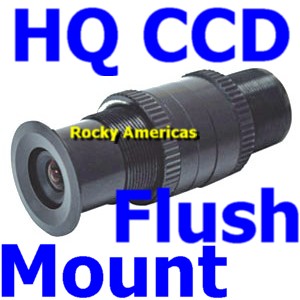

CCD Flush Mount Color Wide View Angle Keyhole Vehicle Rear View Backup Camera
Model Number: DF-8013

CCD Flush Mount Color Wide View Angle Keyhole Vehicle Rear View Backup Camera
Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision. This special flush mount model fits into most vehicle key lock holes, no separate installation is needed!
  • New Arrival - Brand New CCD Flush Mount Wide View Angle COLOR Keyhole Vehicle Rear View Backup Camera
  • SHARP 1/3" CCD Sensor
  • High resolution 420 TV lines
  • Manufacturer pre-set mirror reverse image - displays a reversed camera image on the monitor for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror
  • 120 Degree Wide View Angle - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
  • Water-proof without extra housing: for part (camera glass lens) exposed to outside ONLY and for normal usage ONLY. Camera body and cables are not designed to be exposed to outside and must be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
  • Use standard vehicle power supply of 12V DC
  • Standard RCA video output
  • Camera comes with angle control/fixing rings, RCA video output socket, and power input socket
Sample installation on a BMW 3 Series Sample installation on a BMW 3 Series
Sample installation on a BMW 3 Series
Sample night view pictures Sample night view pictures Sample night view pictures
Sample night view pictures, see how dark the envionment is and how bright the camera view is

Note: The camera is designed to operate with constantly changing voltage levels (within normal range) produced by vehicles' battery and alternator. However, some vehicles have a very high momentary voltage at the vehicle starting time and the overload might cause damage to the camera. If that is the case for your vehicle, you will need to install a fuse, voltage regulator, etc. to protect your camera. Please consult professional vehicle audio/video equipment installers if needed.

System Specifications:

Image Sensor 1/3" SHARP CCD Sensor Horizontal Resolution 420 TV Lines
Effective Pixels 512(H) x 492(V) Minimum Illumination 1 LUX / F:2.0
Sensing Area
4.9mm x 3.7mm
Sync System
Internal
Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V
AGC
Auto
S/N Ratio
Better than 48dB
Electronic Shutter
1/60 - 1/100,000 second
Weight
Approx 100 g
Dimensions (see picture above)
Φ 24 mm x 78 mm (approx. Φ 0.94" x 3.07")
Built-in Lens
f=2.9mm / F=2.0
Cable Output
Standard RCA Video & DC Jack
BLC
Auto
White Balance
Auto
TV System
NTSC
Operating Temperature
14°F - 122°F (-10°C - 50°C) / RH 95% Max Storage Temperature
-4°F - 140°F (-20°C - 60°C) / RH 95% Max
Current Consumption
100mA
Lens Angel
Wide View Angel 120°

specifications are subject to change without notice

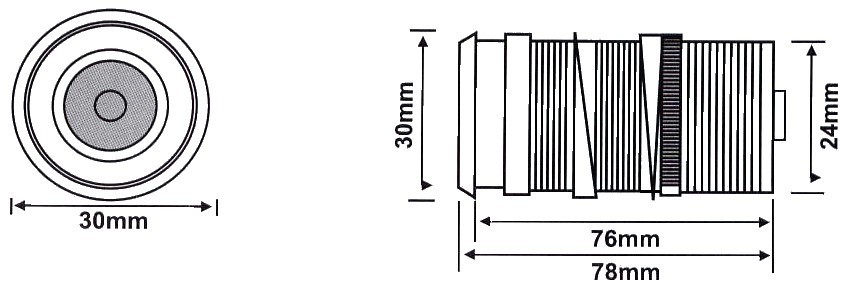

Dimensions
DF-8013 Dimensions

Buy Flush Mount Color Wide View Angle Keyhole Vehicle Rear View Bakcup Camera Now:
US$189.99 US$129.99 + U.S. S/H (US$15.00)
(clicking the "Add to Cart" button below indicates you agree with all terms stated on the Support page)
For your convenience, your camera comes with one free Male Power Lead Plugclick here if you need to purchase an extra one.
