CCD License Plate Mount Color Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera with Metal Frame
Model Number: CW144646CI
NEW Customer Reviews

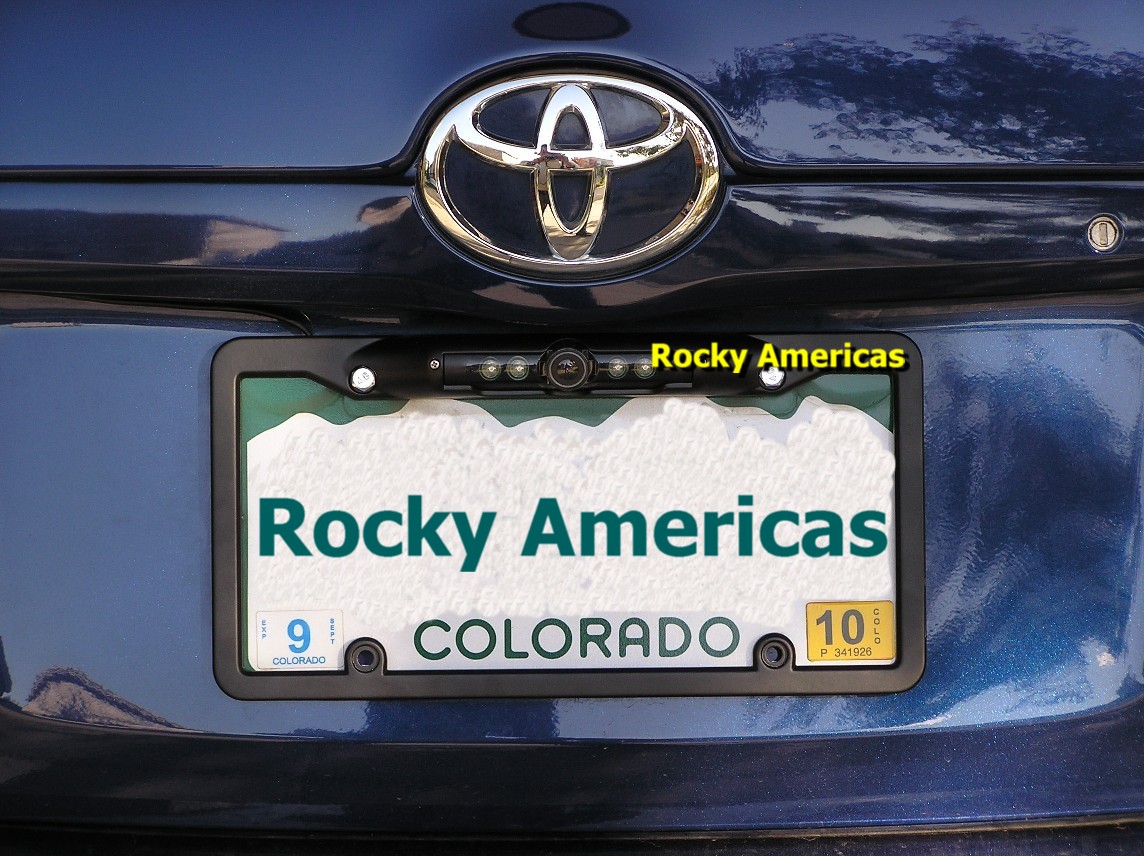

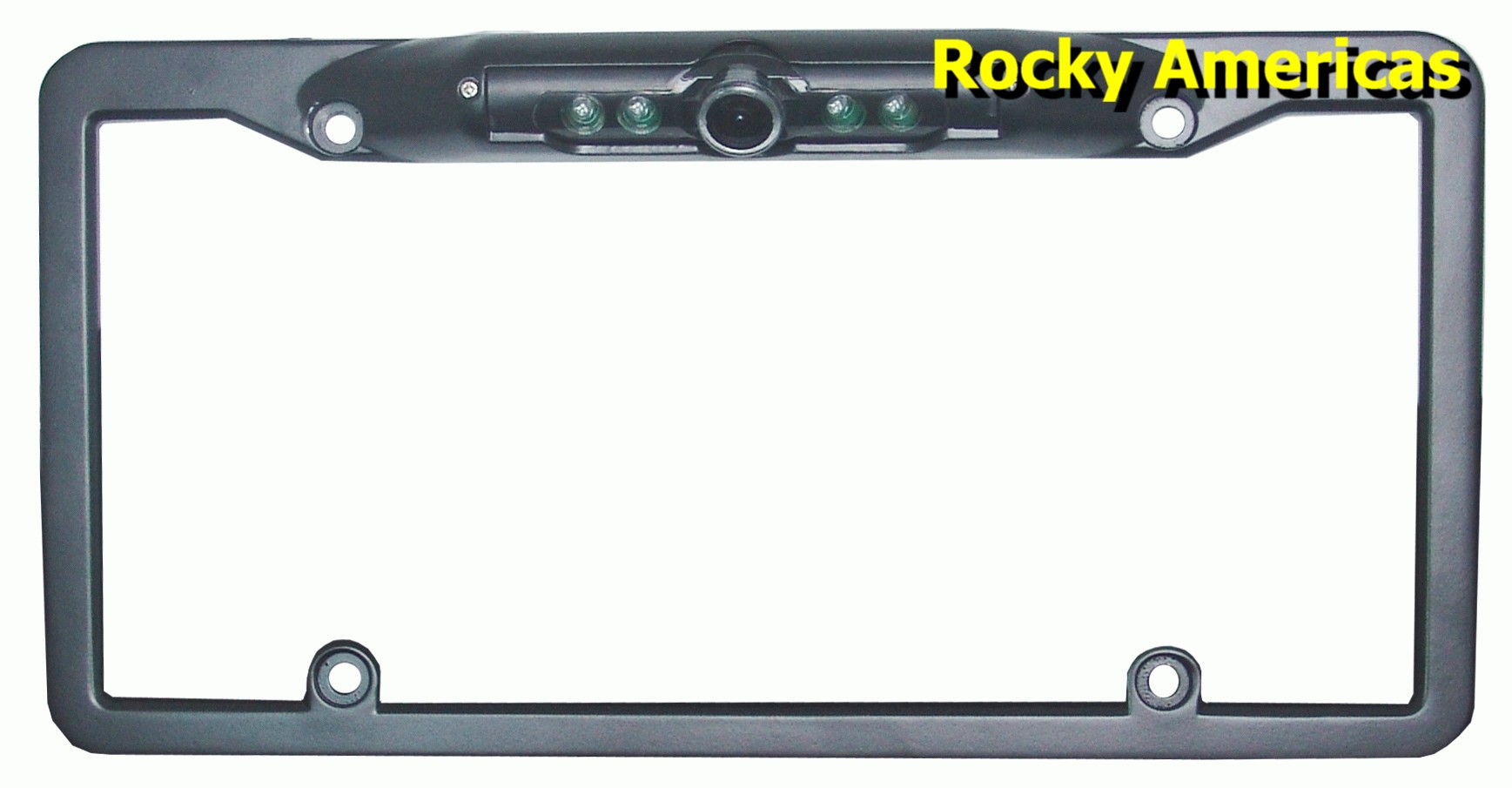

(click on the pictures above to enlarge)
Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision.

System Features:

  • New 2010 Model New Arrival - Brand New COLOR CCD License Plate Mount Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera with Metal Frame
  • Mount directly on top of your license plate (for U.S. standard license plates), no complicated installations
  • EXTRA Wide View Angle 180 degree, special SHARP 1/4" CCD image sensor with extra wide 1.7mm/1.8mm lens! - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
  • User adjust left/right mirror reverse image - can set to display a reversed camera image on the monitor (for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror) OR a normal view on the monitor (for vehicle front viewing) - connect two-pin jumper connector to the mirror reverse wire to set for normal view

connect two-pin jumper connector to the mirror reverse wire to set for normal view
  • Use standard vehicle power supply of 12V DC
  • Water-proof without extra housing: for normal usage ONLY. Camera body and cables should be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
  • Adjustable view, up to 45 degree tilt down
  • Standard RCA video output
  • NEW Optional silver color is available, you must contact us before making purchase to check the availability of the silver color model, otherwise standard black color model will be shipped! No exchange for color selection! Please do not ask after shipping.

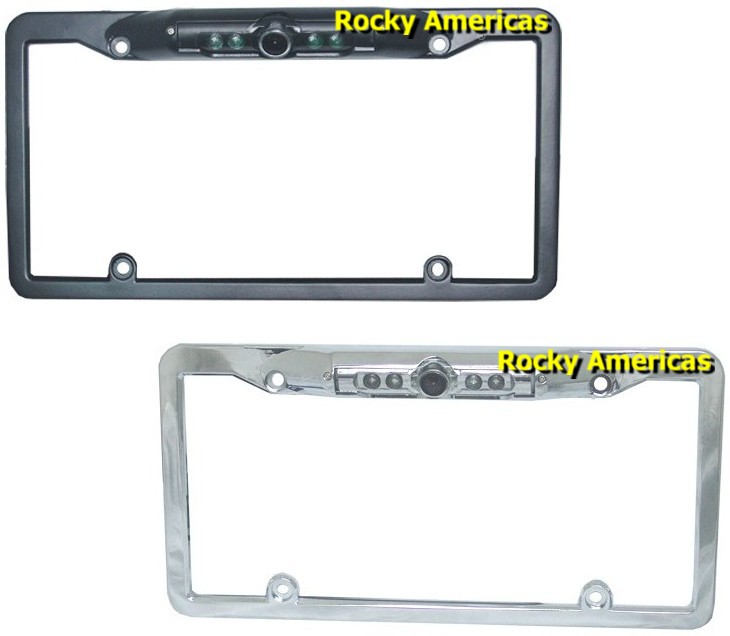

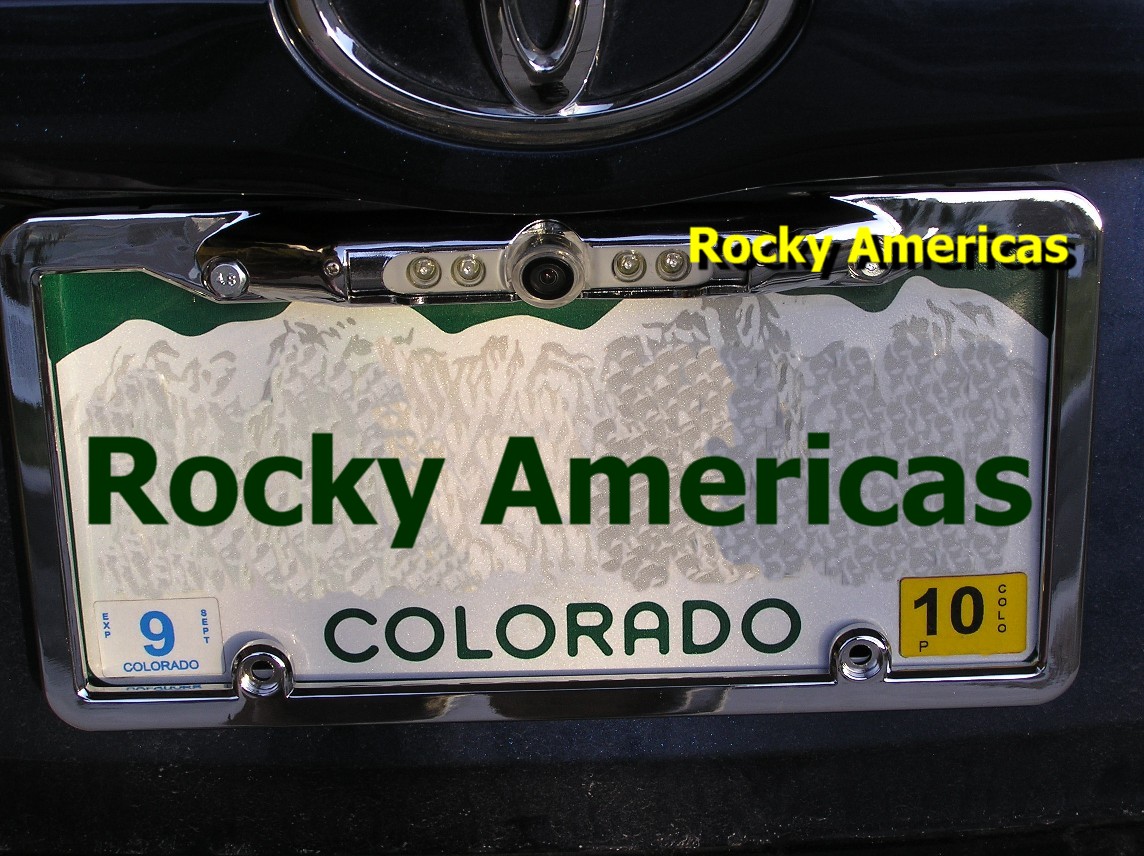

black and silver color units are available

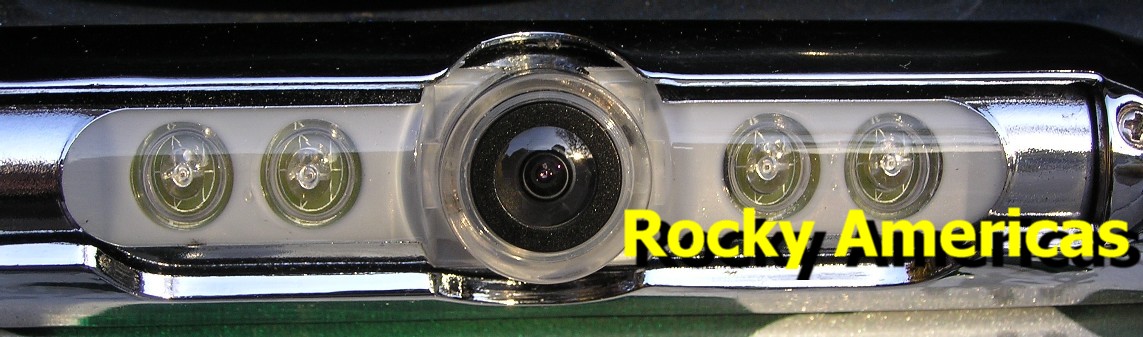

silver color unit detail

(click on the pictures above to enlarge)

Note: The camera is designed to operate with constantly changing voltage levels (within normal range) produced by vehicles' battery and alternator. However, some vehicles have a very high momentary voltage at the vehicle starting time and the overload might cause damage to the camera. If that is the case for your vehicle, you will need to install a fuse, voltage regulator, etc. to protect your camera. Please consult professional vehicle audio/video equipment installers if needed.

System Specifications:

Image Sensor Special 1/4" SHARP CCD Sensor Horizontal Resolution 420 TV Lines
Effective Pixels 512(H) x 492(V) Minimum Illumination 0 LUX (w/IR LEDs on) / F:2.0
Sensing Area
3.6mm x 2.7mm
Sync System
Internal
Horizontal Sync Frequency
15,734 KHz
Vertical Sync Frequency 60 Hz
Scanning System
1/2 Interlace
Gamma Consumption
0.45
Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V
AGC
Auto
S/N Ratio
Better than 48dB
Electronic Shutter
1/60 - 1/100,000 second
Weight
Approx. 235 g (8.3 oz)
Dimensions (with Standard U.S. License Plate Frame, see picture below)
Approx. 312 mm (w) x 160 mm (h) x 27 mm (d)
Approx. 12.3" (w)  x 6.3" (h) x 1.1" (d)
Built-in Lens
f=1.7mm or 1.8mm / F=2.0
Cable Output
Standard RCA Video (Yellow) & DC (Black) Jack
BLC
Auto
White Balance
Auto
TV System
NTSC
Operating Temperature
-4°F - 158°F (-20°C - 70°C) / RH 95% Max
Storage Temperature
-40°F - 185°F (-40°C - 85°C) / RH 95% Max
Current Consumption
Max 180mA
Lens Angel
Wide View Angel 180°
specifications are subject to change without notice

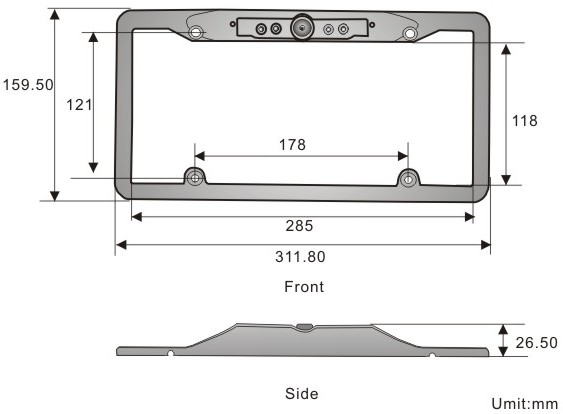

CW144646CI Model Dimensions

Buy CCD License Plate Mount Color Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera with Metal Frame Now:
US$249.99 US$149.99 + U.S. S/H (US$15.00)
NOTE: Optional silver color is available, you must contact us before making purchase to check the availability of the silver color model, otherwise standard black color model will be shipped! No exchange for color selection! Please do not ask after shipping.
(clicking the "Add to Cart" button below indicates you agree with all terms stated on the Support page)
For your convenience, your camera comes with one free Male Power Lead Plugclick here if you need to purchase an extra one.
