Top Quality 7" Mobile TFT LCD Monitor
Model Number: AL-726

This TFT LCD monitor is one of the best mobile in-vehicle use LCDs in quality. It can be used with any of our vehicle rear view backup cameras together as a complete Vehicle Rear View Backup System. The LCD monitor has two standard RCA type video inputs and one standard RCA type audio input that give you the most convenience. For example you can connect the LCD monitor to your rear view camera AND your DVD player at the same time, and switch between the two by one button press.
  • New Arrival -  Brand New 7" Mobile TFT LCD Monitor
  • Manufacture Suggested Retail Price (MSRP) : $399
  • Auto activate / power on when vehicle in reverse mode (use of the blue trigger wire)
  • Two video inputs, one button switch between Video 1 and Video 2
  • Left/Right reverse image switch - displays a reversed camera image on the monitor to duplicate the normal view seen in a rear-view mirror (if the camera doesn't have the reverse image feature)
  • Up/Down inverted image switch - supports roof mounting
  • Ultra thin - can be installed in the head-rest of a car seat, comes with head-rest installation frame
  • Multilingual on-screen menu
  • NTSC/PAL System auto switch
  • Full Function Remote Control
  • High Resolution, Wide View Angle Screen - Aspect ratio of 16:9 and 4:3
  • Built-in audio speaker
  • Menu controls of brightness, contrast, color, volume
  • Low power consumption, zero X-ray radiation

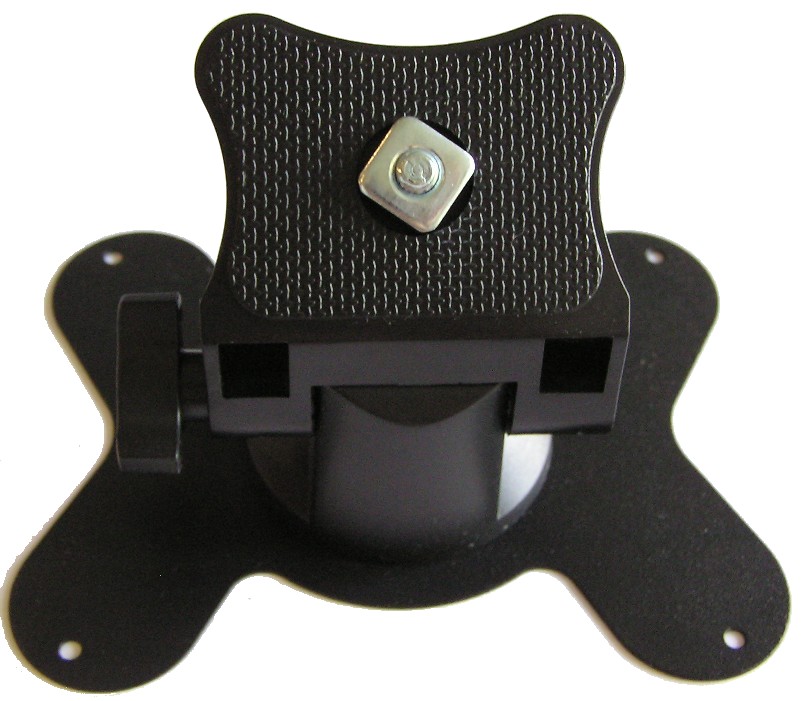

Supporting Bracket

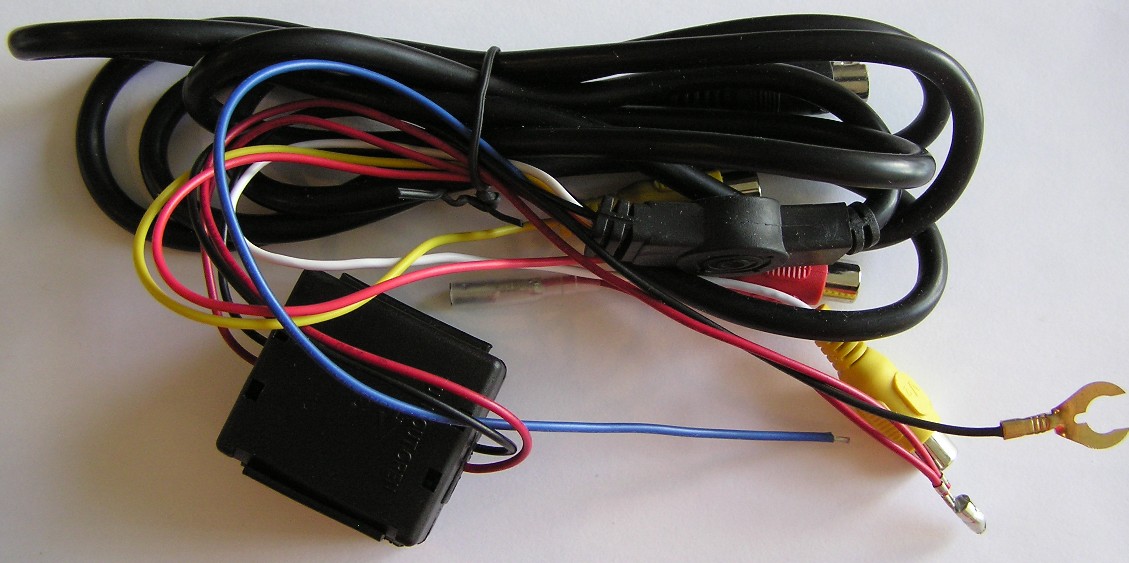

AV Power Cable

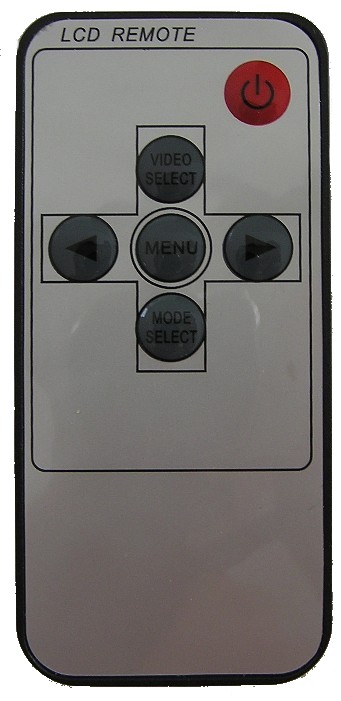

Remote Control
(Click on the pictures to enlarge)

AL-726 TFT LCD Monitor Kit Content:
One (1) 7" TFT LCD Monitor, one (1) Remote Control, one (1) AV Power Cable, one (1) Supporting Bracket, and one (1) Manufacturer Instruction sheet.

Note: The LCD screen has a manufacturer attached soft protecting film that cannot be removed, there might be cosmetic scratches on the protecting film from shipping, which would not affect the viewing of the LCD screen.

System Specifications:

Display Screen TFT 7" Aspect Ratio Two-Mode: Wide Screen 16:9, Normal 4:3
Resolution 1440 (W) x 234 (H)
TV System
Power Consumption 7W Input Power Voltage
DC 12V
Working Temperature -4°F - 149°F (-20°C - 65°C) Contrast Ratio
350 : 1
Monitor Size without Frame
Approx. 173mm x 114mm x 23mm
(Approx. 6.8" x 4.5" x 0.9")

Weight without Frame or Cable
Approx. 330 g
(Approx. 11.6 oz)

Buy Top Quality 7" Mobile TFT LCD Monitor Now:
US$249.99 US$189.99 + U.S. S/H (US$25.00)
