CCD Color Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera
Model Number: CW134073CI, CW134073CAI (audio model)



connect two-pin connector to the mirror reverse wire to set for normal view
Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision.

System Features:

  • New Arrival - Brand New COLOR CCD Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera
  • New Feature: user adjust left/right mirror reverse image - can set to display a reversed camera image on the monitor (for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror) OR a normal view on the monitor (for vehicle front viewing) - connect two-pin connector to the mirror reverse wire to set for normal view
  • Use standard vehicle power supply of 12V DC
  • Water-proof without extra housing: for normal usage ONLY. Camera cables are not designed to be exposed to outside and must be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
  • Wide View Angle - 120 degree - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
  • Standard RCA video output
  • NEW Audio model is available - Audio capability lets you hear your friend who is helping you backing up from the back of your vehicle!

Note: The camera is designed to operate with constantly changing voltage levels (within normal range) produced by vehicles' battery and alternator. However, some vehicles have a very high momentary voltage at the vehicle starting time and the overload might cause damage to the camera. If that is the case for your vehicle, you will need to install a fuse, voltage regulator, etc. to protect your camera. Please consult professional vehicle audio/video equipment installers if needed.

System Specifications:
Image Sensor 1/3" SHARP CCD Sensor Horizontal Resolution 420 TV Lines
Effective Pixels 519(H) x 492(V) Minimum Illumination 0 LUX (w/ LEDs on) / F:2.0
Sensing Area
3.6mm x 2.7mm
Sync System
Internal
Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V
AGC
Auto
S/N Ratio
Better than 48dB
Electronic Shutter
1/60 - 1/100,000 second
Weight
Approx 350 g
IR Distance 30 feet (10 meters)
Built-in Lens
f=2.8mm / F=2.0
Cable Output
Standard RCA Video (Yellow) & DC (Red) Jack
BLC
Auto
White Balance
Auto
TV System
NTSC
Operating Temperature
14°F - 122°F (-10°C - 50°C) / RH 95% Max
Storage Temperature
-4°F - 140°F (-20°C - 60°C) / RH 95% Max
Current Consumption
Max 350mA
Lens Angel
Wide View Angel 120°
Dimensions (see picture below) 72 mm (w) x 42 mm (h) x 52 mm (d) (without bracket or shield) -> approx. 2.8" (w) x 1.7" (h) x 2.0" (d)
72 mm (w) x 77 mm (h) x 65 mm (d) (with bracket and shield) -> approx. 2.8" (w) x 3.0" (h) x 2.6" (d)

specifications are subject to change without notice

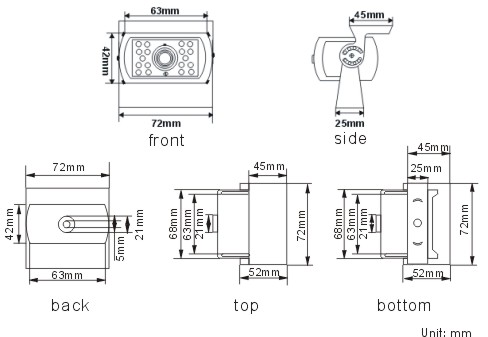

CW134073CI Rear View Camera Dimensions
CW134073CI Model Dimensions

Buy CCD Color Night Vision Wide View Angle Vehicle Rear View Camera Now:
(clicking the "Add to Cart" button below indicates you agree with all terms stated on the Support page)

CW134073CI Model
CW134073CAI Audio Model
US$199.99 US$139.99 + U.S. S/H (US$15.00)
US$209.99 US$149.99 + U.S. S/H (US$15.00)

For your convenience, your camera comes with one free Male Power Lead Plugclick here if you need to purchase an extra one.
