CCD Color Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera
Model Number: DF4103, DF4103A (audio model)

CCD Rear View Camera
Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision.

System Features:

  • New Arrival - Brand New COLOR CCD Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera
  • Manufacturer pre-set mirror reverse image - to display a reversed camera image on the monitor for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror
  • High power, 18 over launch infrared LED tubes - auto activate at night
  • Comes with adjustable sunshade (as pictured)!
  • Use standard vehicle power supply of 12V DC
  • Water-proof without extra housing: for normal usage ONLY. Camera cables are not designed to be exposed to outside and must be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
  • Wide View Angle - 120 degree - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
  • Standard RCA video output
  • NEW Audio model is available - Audio capability lets you hear your friend who is helping you backing up from the back of your vehicle!
  • Normal front view model is available, contact us!

Note: The camera is designed to operate with constantly changing voltage levels (within normal range) produced by vehicles' battery and alternator. However, some vehicles have a very high momentary voltage at the vehicle starting time and the overload might cause damage to the camera. If that is the case for your vehicle, you will need to install a fuse, voltage regulator, etc. to protect your camera. Please consult professional vehicle audio/video equipment installers if needed.

System Specifications:

Image Sensor 1/3" SHARP CCD Sensor Horizontal Resolution 380 TV Lines
Effective Pixels 510(H) x 492(V) Minimum Illumination 0 LUX (w/ LEDs on) / F:2.0
Horizontal Sync Frequency
 15,734 kHz
 Vertical Sync Frequency
 60 Hz
Image Sensing Area
 4.9 mm x 3.7 mm
 Sync System
 Internal
Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V
AGC
 Auto
 S/N Ratio
 Better than 48dB
Electronic Shutter
 1/60 - 1/10,000 second
 Weight
 Approx. 290 g (Approx. 10.2 oz)
IR Distance 3 - 5 meters (10 - 15 feet)
 Built-in Lens
 f=2.9mm / F=2.0
Cable Output
 Standard RCA Audio/Video
 BLC
 Auto
White Balance
 Auto
 TV System
 NTSC
Operating Temperature
 -4°F - 158°F (-20°C - 70°C) / RH 95% Max
 Storage Temperature
 -40°F - 176°F (-40°C - 80°C) / RH 95% Max
Current Consumption
 Max 500mA
 Lens Angel
 Wide View Angel 120°
Dimensions (see picture below) 76 mm (w) x 70 mm (h) x 84 mm (d) with bracket -> Approx. 3.0" (w) x 2.8" (h) x 3.3" (d)
specifications are subject to change without notice

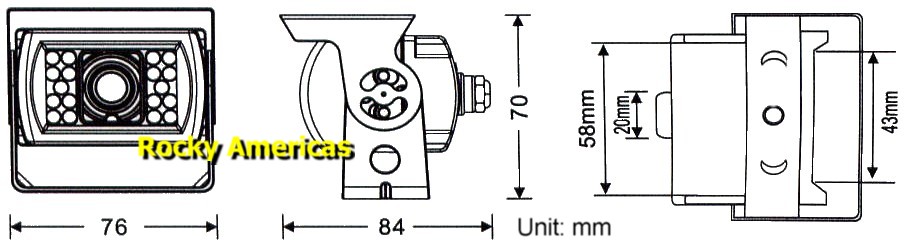

Rear View Camera Dimensions
DF4103 Model Dimensions

Buy CCD Color Night Vision Wide View Angle Vehicle Rear View Camera Now:
(clicking the "Add to Cart" button below indicates you agree with all terms stated on the Support page)

DF4103 Model
 DF4103A Audio Model
US$199.99 US$139.99 + U.S. S/H (US$15.00)
 US$209.99 US$149.99 + U.S. S/H (US$15.00)

For your convenience, your camera comes with one free Male Power Lead Plug, click here if you need to purchase an extra one.
