2.4 GHz Color Wireless Micro Camera with Receiver Kit
Model Number: 810T

810T Camera 4-Channel Receiver

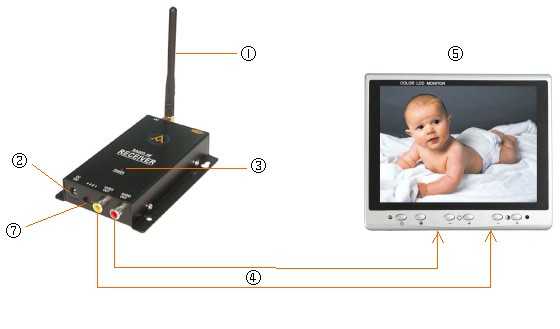

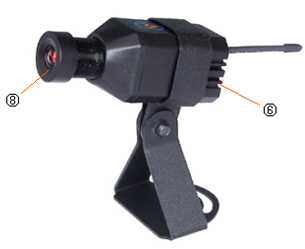

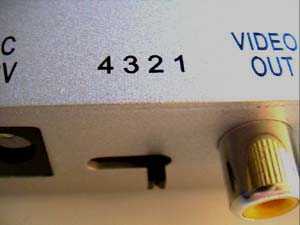

1. Receiver Antenna  2. Receiver Power Socket  3. Receiver Power Indicator  4. Audio/Video Jack to Monitor  5. Monitor (not included)  6. Camera Power Socket  7. Receiver Channel Selector  8. Camera Lens

810T Package Content:
One (1) Wireless A/V Micro Camera, one (1) 4-Channel Capable Wireless A/V Receiver, one (1) RCA type Video Cable, plus YOUR BONUS: one (1) DC 8V Power Adapter (for camera), one (1) DC 12V Power Adapter (for receiver), and one 9V Battery Clip.

810T Specifications:

Transmission Frequency 2.400 - 2.483 GHz (4 Channels) Band Width
18 MHz
View Angle
62°
Minimum Illumination
1 LUX
Resolution 380 lines TV System NTSC
Scan Frequency EIA: 60 Hz  Power Supply Camera: DC 8V, Receiver: 12V
Output Power 10mW Camera Power Consumption Current 150 mA
Video Output
1.5vp-p 75 ohm
Audio Output
1vp-p 600 ohm
Image Sensor
CMOS 1/3 inch
Pixels
510 x 492
Sync System
Internal
White Balance Control
AWB (zero color rolling)
Gain Control
AGC
S/N Ratio
38dB min
Electronic Shutter
1/60 - 1/15,000 sec
Gamma Correction
0.45
Operation Temperature
14°F - 122°F (-10°C - 50°C)
Storage Temperature
-40°F - 185°F (-40°C - 85°C)
Operation Humidity
85% RH
Weight
Camera: 15 g / 0.5 oz,  Receiver: 135 g / 5 oz
Camera Dimensions 24 mm x 21 mm x 21 mm Receiver Dimensions 59 mm x 115 mm x 20 mm

Buy 810T Kit Now:

US$139.99 US$119.99 + U.S. S/H (US$19.00)
(
clicking the "Add to Cart" button below indicates you agree with all the terms stated on the Support page)

Contact us for availability!
